Low Voltage Capacitors

Power quality is becoming increasingly essential, and power factor correction (PFC) will be implemented on a larger scale in the future. Enhancing power quality—by improving the power factor—saves costs and ensures a quick return on investment. In power distribution, particularly in low- and medium-voltage networks, PFC targets the power factor (cos ø) and optimizes voltage stability by generating reactive power, which improves voltage quality and reliability at the distribution level.

INDTECH Power Capacitors are manufactured to the highest quality standards, adhering to international specifications such as IEC EN 60831-1/2 and CE marking. They also comply with Indian standards (ISI) and other relevant industry requirements. Furthermore, we offer a dedicated series designed specifically for global market demands.

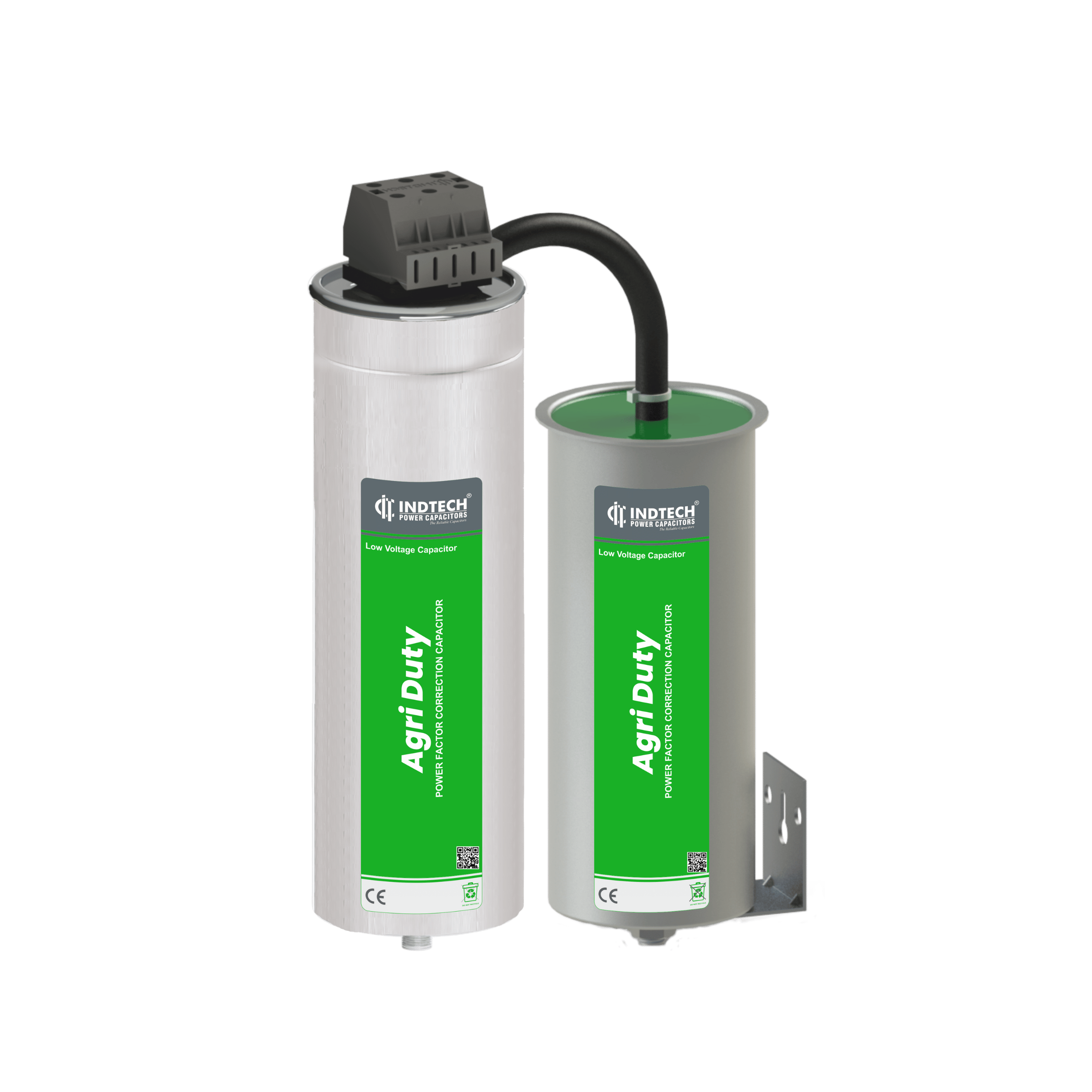

Agri Prime
Range: 0.5 – 25 kVAr Cylindrical 50Hz. 230-440VAC

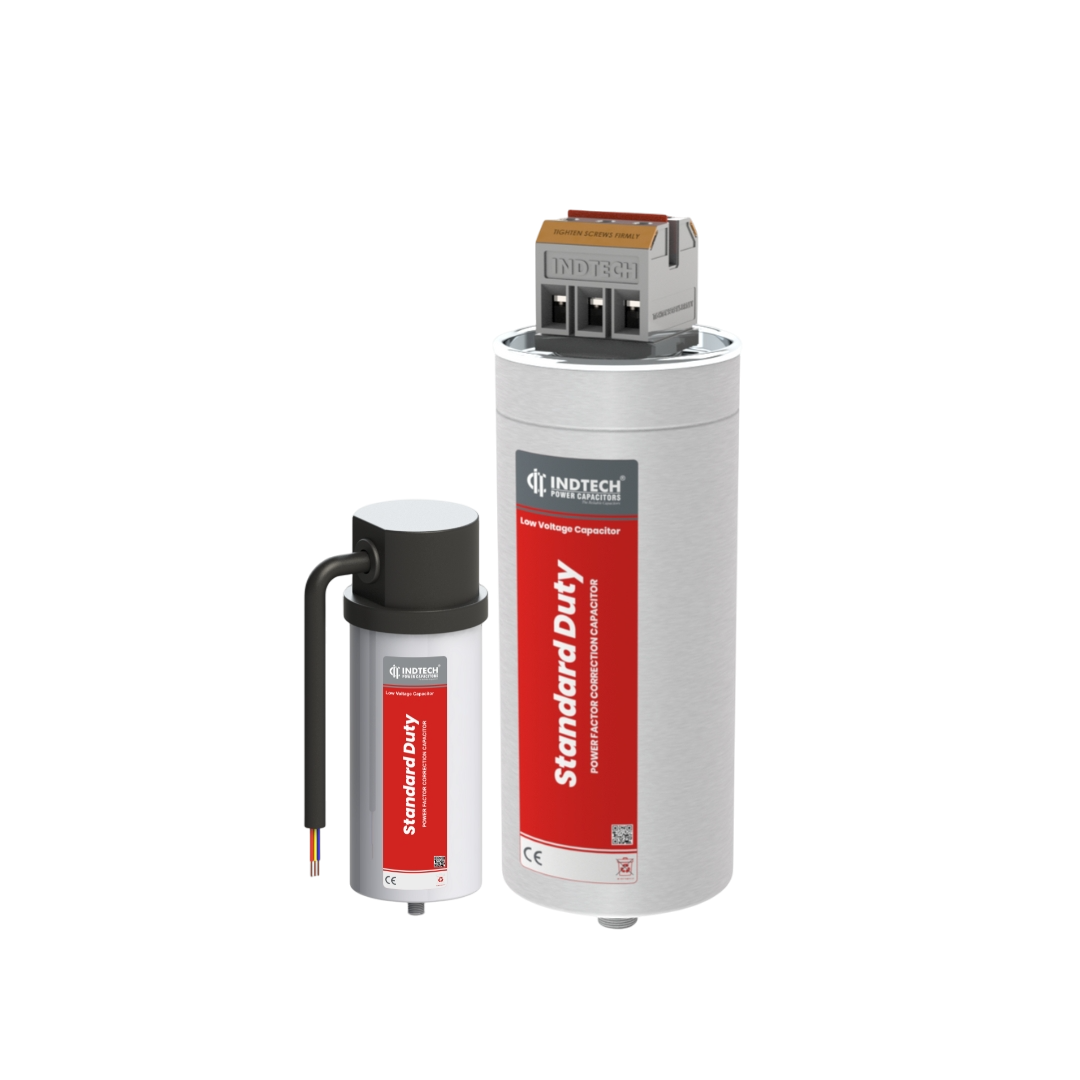

Standard Duty
Range: 0.5 – 30 kVAr Cyl., 1 – 25 Box 230- 440 Volts

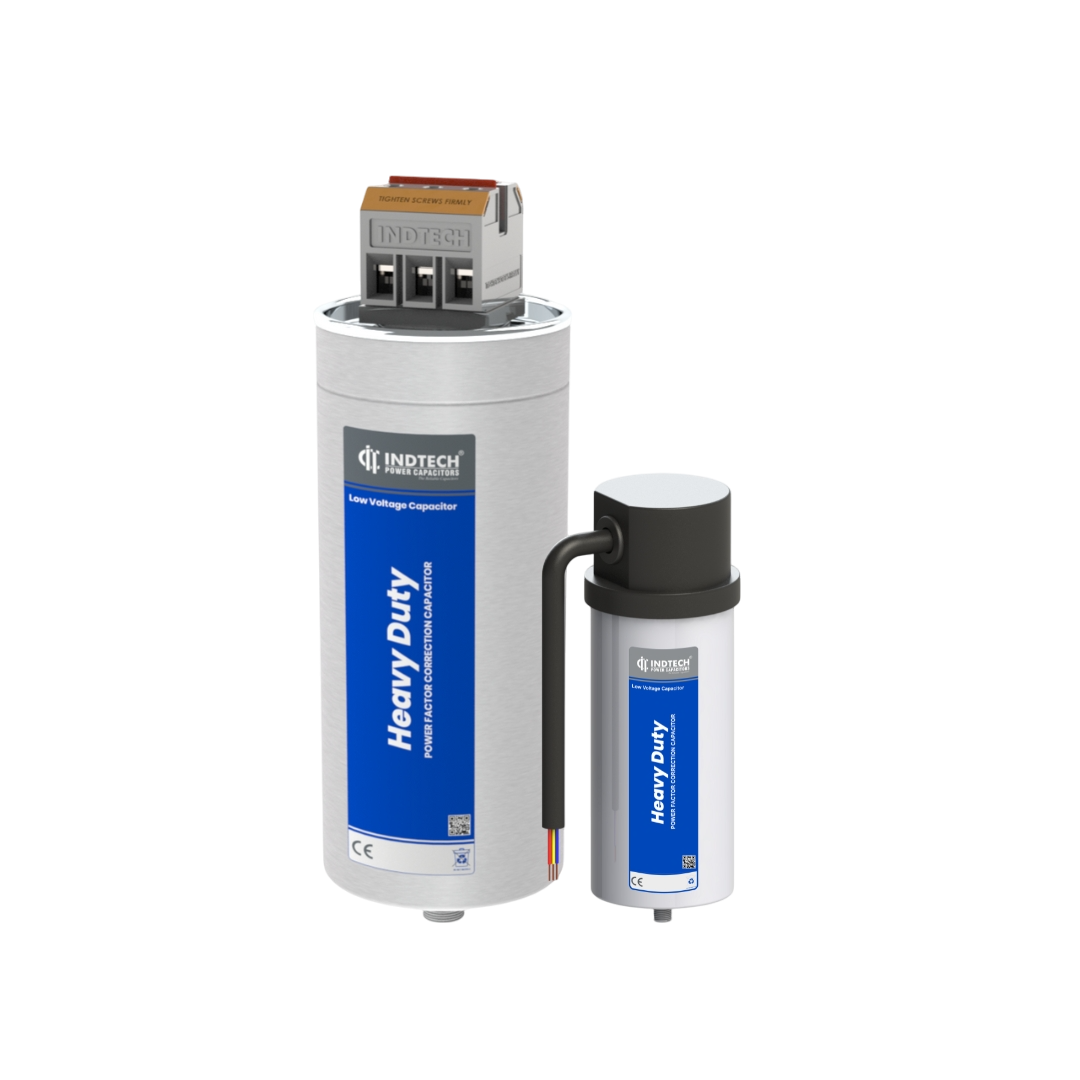

Heavy Duty
Range: 1 – 50 kVAr Cyl., 5 – 50 Box 230-690 Volts

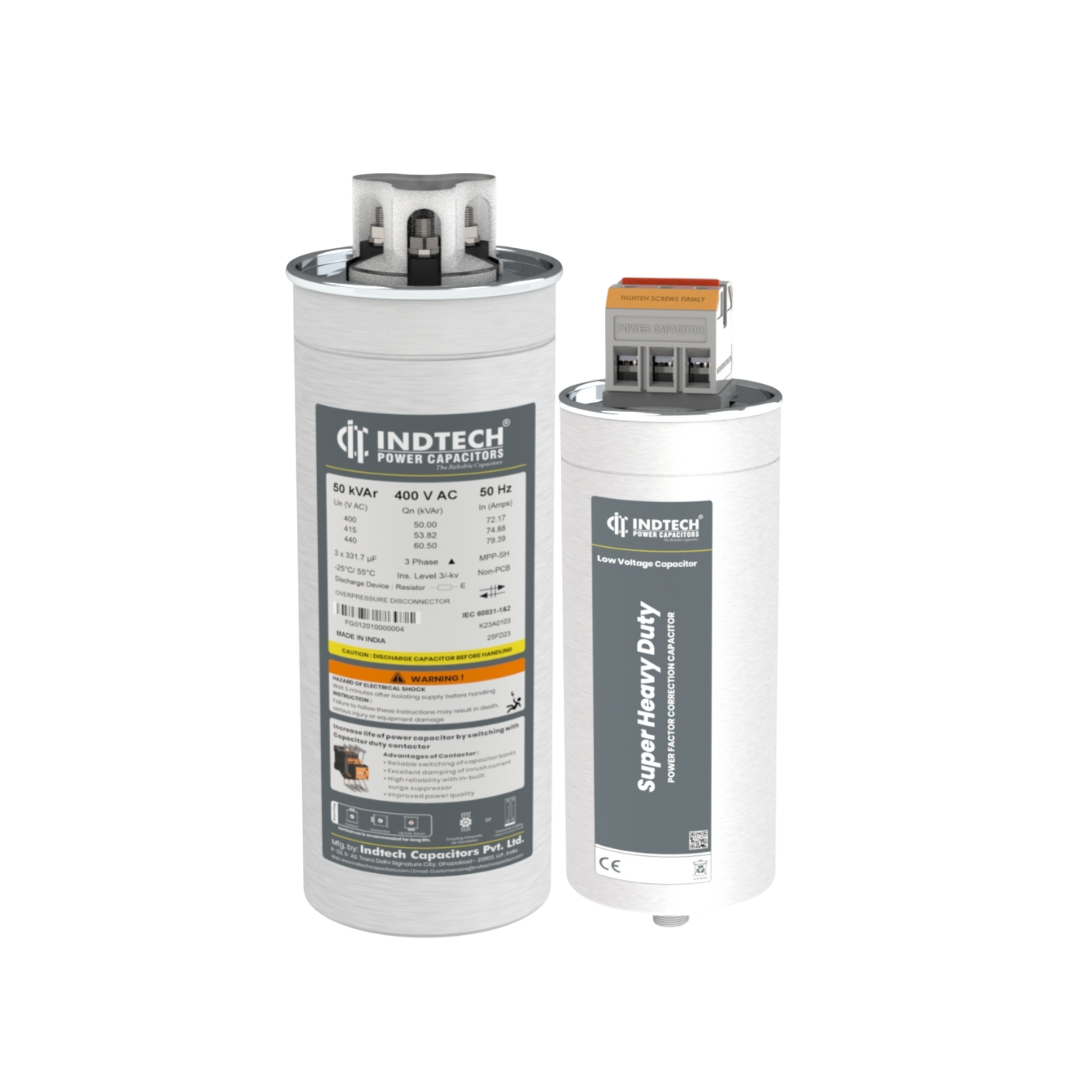

Super Heavy Duty
Range: 5 – 50 kVAr Cyl., 5 – 100 Box 400-830 Volts





Main Features

  • Capacitors for various voltage ratings, such as 415V, will be manufactured according to customer demand.

  • kVAr Ratings other than mentioned in the above table will be manufactured as per customer demand.

  • Capacitors for 60 Hz frequency will be manufactured as per customer demand.

    •

    Technical Specifications

    Category

    Agri Prime

    Standard Duty

    Heavy Duty

    Super Heavy Duty

    Standard
    (Reference for Design)

    IS 13340-1 & 2, IEC 60831-1 & 2







    Rated Reactive Power range

    0.5 - 25 kVAr Cylindrical

    0.5 - 30 kVAr Cyl., 1 - 25 Box

    1 - 50 kVAr Cyl., 5 - 50 Box

    5 - 50 kVAr Cyl., 5 - 100 Box

    Rated Voltage

    230-440VAC

    230- 440 Volts

    230-690 Volts

    400-830 Volts

    Tolerance on Capacitance

    -5% to +10% As per standards







    Rated Frequency

    50Hz







    Connection

    Three phase Delta Connection
    (Single Phase on Request)







    Peak overvoltage

    120% rated

    120% rated

    135% rated

    135% rated

    Dielectric

    110% rated

    110% rated

    125% rated

    125% rated

    Maximum Over Voltage Umax.

    Un + 10% 8 h in every 24 h,
    Un + 15% 30 min in every 24 h
    Un + 20% 5 min in every 24 h,
    Un + 30% 1 min in every 24 h







    Over Current

    Up to 1.1 x IR
    (Upto 1.5 x IR including combined effect of harmonics, over voltage and capacitance)

    Up to 1.1 x IR
    (Upto 1.5 x IR including combined effect of harmonics, over voltage and capacitance)

    Up to 1.2 x IR
    (Upto 1.8 x IR including combined effect of harmonics, over voltage and capacitance)

    Up to 1.3 x IR
    (Upto 2.2 x IR including combined effect of harmonics, over voltage and capacitance)

    Maximum fault current

    10 kV

    10 kV

    10 kV

    15 kV

    Dielectric System

    Metallized Polypropylene Film,
    Self- Healing







    Losses

    <0.5 Watt/ kVAr

    <0.5 Watt/ kVAr

    <0.35 Watt/ kVAr

    <0.2 Watt/ kVAr

    Protection class

    IP20

    IP20

    IP20

    IP20

    Cooling

    Natural Air Cooled







    Max. above from sea level

    4000 mtr's







    Case

    Aluminium & Plastic Body

    Extruded aluminum can for Cylindrical,
    CRCA Powder Coated (RAL) Sheet for Box Type





    Discharge Resistor

    Special Design International
    Discharge Resistance 75V in less than 180 sec.







    Terminal

    Fast on-Pin, Wire & Stud Terminals

    Fast on-Pin, Wire, Screw & Clamptite stud Terminals





    Execution

    Indoor / Outdoor

    Capacitance Range





    Life expectancy

    1,00,000 Operation Hours

    1,00,000 Operation Hours

    1,50,000 Operation Hours

    2,10,000 Operation Hours

    Inrush Current

    Upto 200 x IR

    Upto 200 x IR

    Upto 300 x IR

    Upto 500 x IR

    Test Voltage
    (Terminal to Terminal)

    2.15 x VR AC for 10 sec.







    Test Voltage
    (Terminal to Casing)

    3.6 kV, AC 2S







    Temperature Category

    -25°C/ 55°C

    -25°C/ 55°C

    -25°C/ 55°C

    -40°C/ 55°C

    Mounting Position

    Vertically

    Cylindrical: Horizontally and Vertically Vertical use is recommended for long life Box
    Type: Vertically





    Number of Switching Operation

    Imax: 5,000 switching per year

    Imax: 5,000 switching per year

    Imax: 8,000 switching per year

    Imax: 20,000 switching per year
