Motor Start Capacitor Manufacturers

Start capacitors are used during the motor start-up phase to provide rotating torque and are disconnected once the motor reaches a pre-determined speed. Aluminium electrolytic and MPP AC motor start capacitors are mainly used for starting single-phase AC motors with a rated voltage of 110-370VAC and a frequency of 50/60 Hz.

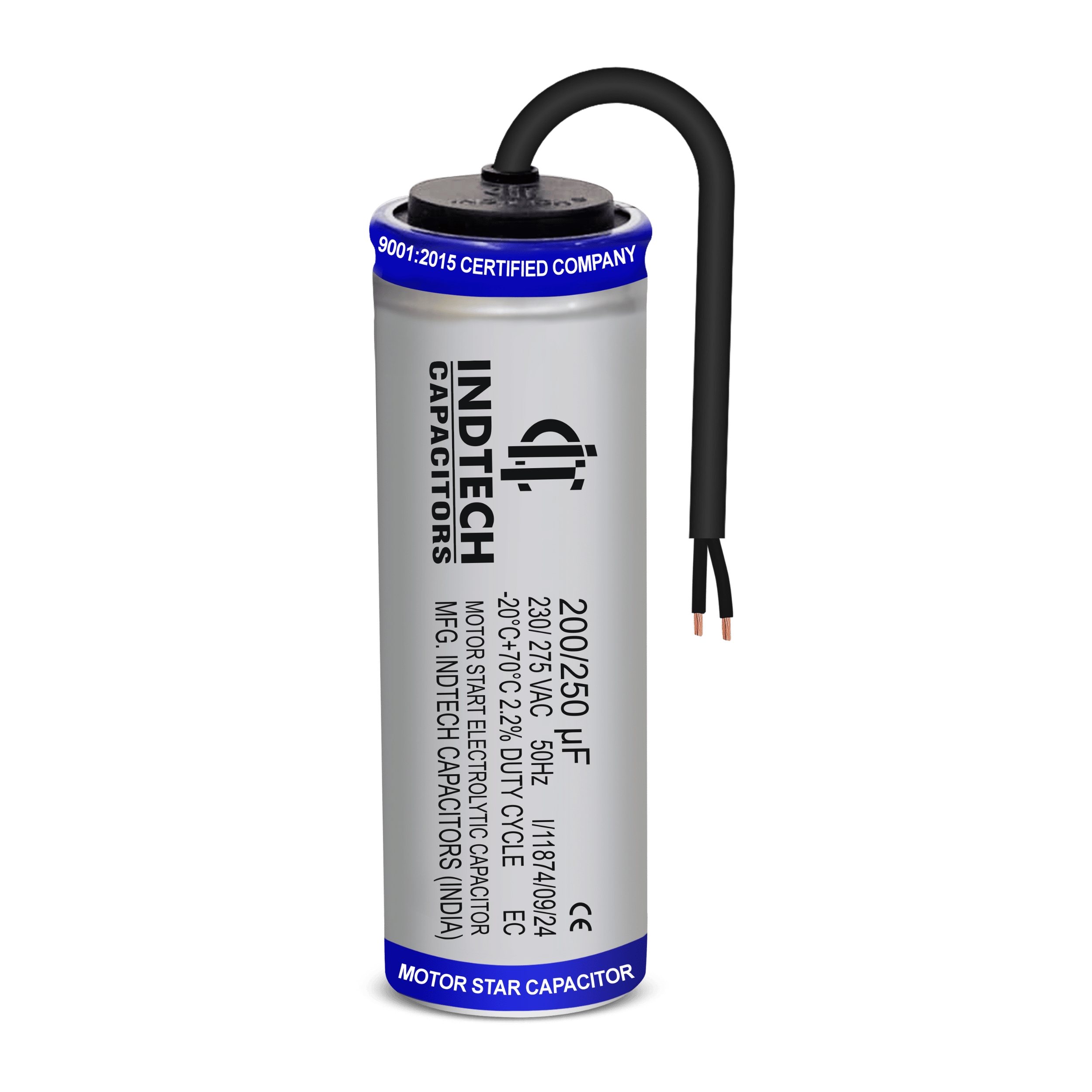

Motor Start Electrolytic Capacitors
Range: – 40/60 MFD To 400/500 MFD 50Hz. 450 Volt





Main Features

  • Round plastic case and Aluminium sealed case with PVC Sleeve Voltage from 110V AC to 275V AC

    •

    Technical Specifications

    Capacitance Range

    40/60 MFD ~ 200/250 MFD

    Capacitance Tolerance

    ±5%, ±10%

    Rated Voltage

    230 ~ 275V AC

    Rated Frequency

    50/60Hz

    Tan Delta

    ≤0.0020(100Hz)

    Climatic Category

    -25/70/21

    Case

    Aluminium

    Dielectric

    -

    Encapsulation

    Semi-Biodegradable Resin

    Reference Standards

    IEC 60252 , IS:2993
