Motor Run Capacitor Manufacturers

Run Capacitor : Essential for efficient and smooth motor operation.
Start Capacitor : Essential for initiating motor rotation. MPP Capacitors for Motor Run & Start are meticulously designed to enhance motor performance. Experience smoother, more efficient motor operation with our premium quality capacitors.
Key features include: Reduced Power Loss, High Efficiency Levels, Robust Construction, Ensure long-lasting durability and reliable operation, Precise Design Optimize capacitance values for optimal motor performance.

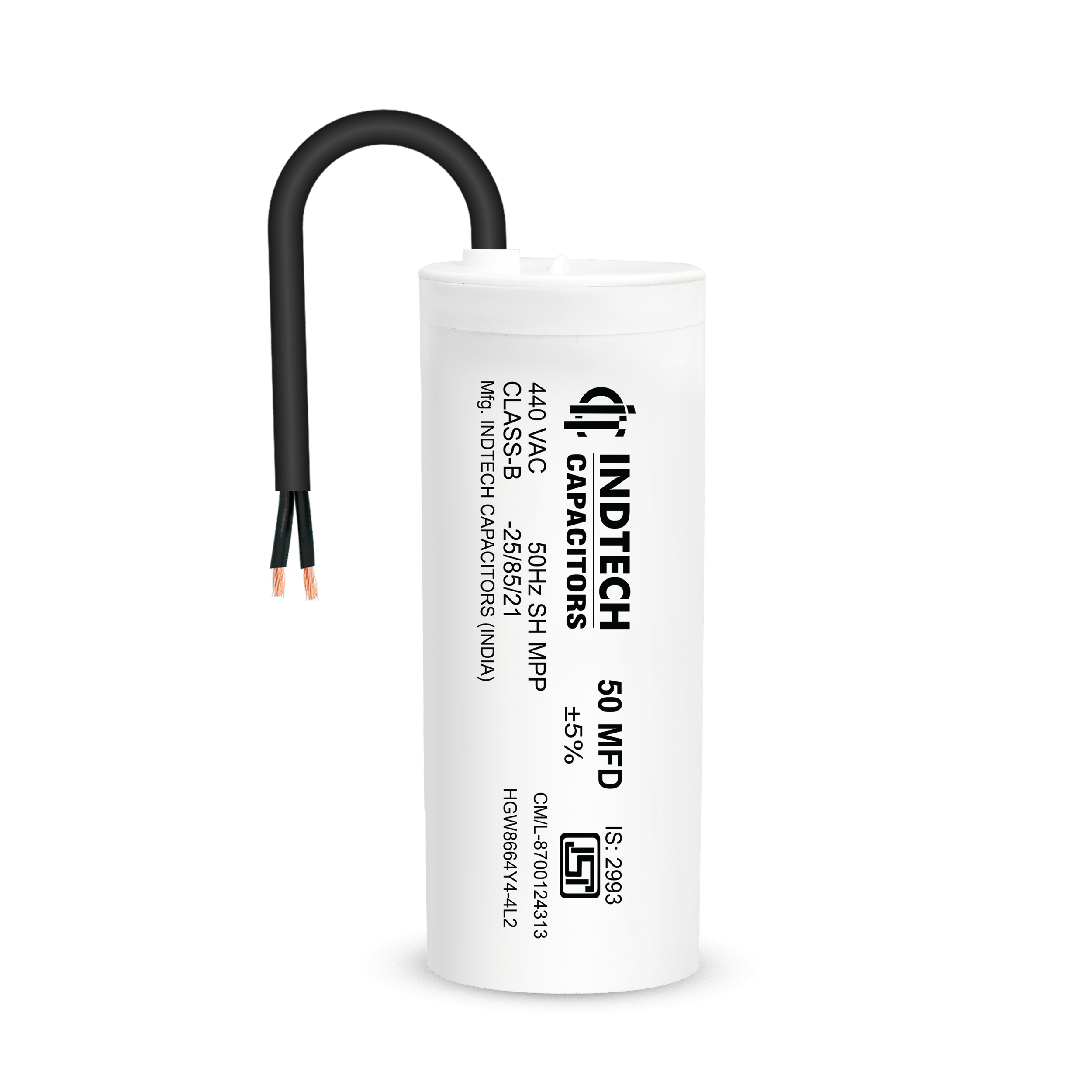

Plastic Body-Motor Run Capacitor
Range: 4.00 MFD To 72.00 MFD 50Hz. 440 Volt

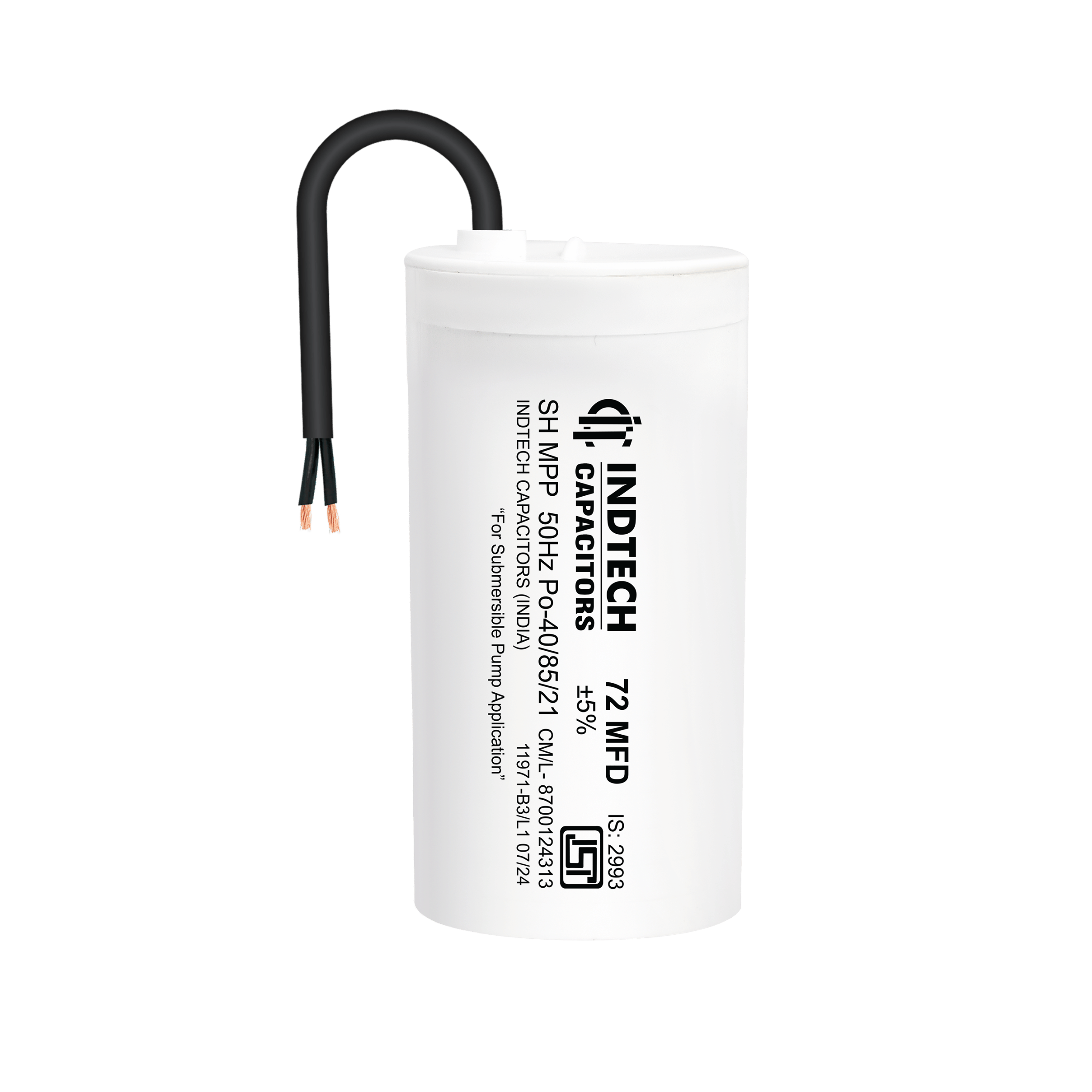

Plastic Body-Submersible Pump Applications
Range: 25.00 MFD To 120.00 MFD 50Hz. 440 Volt

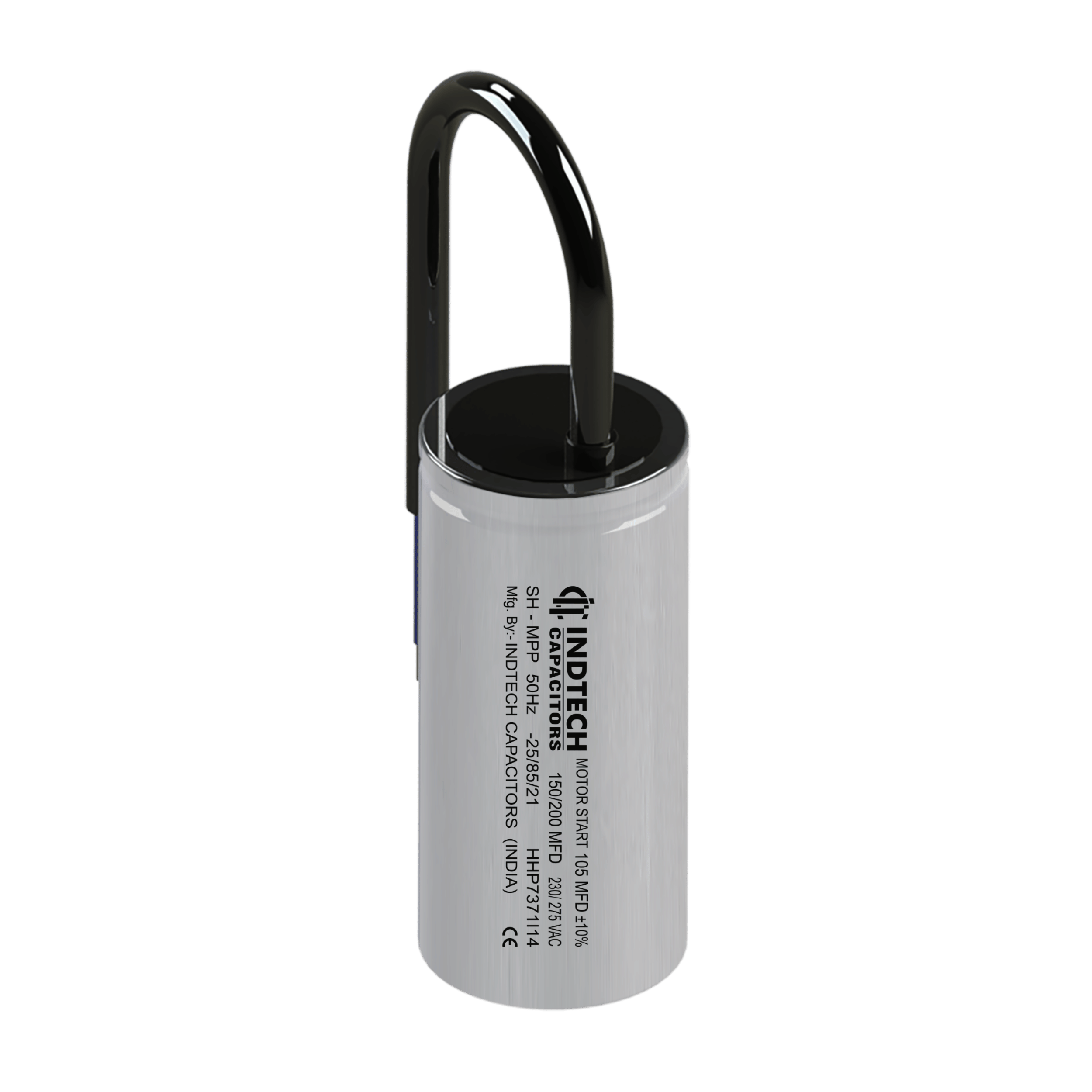

Aluminum Body
Range: 40/60 MFD To 400/500 MFD 50Hz. 440 Volt

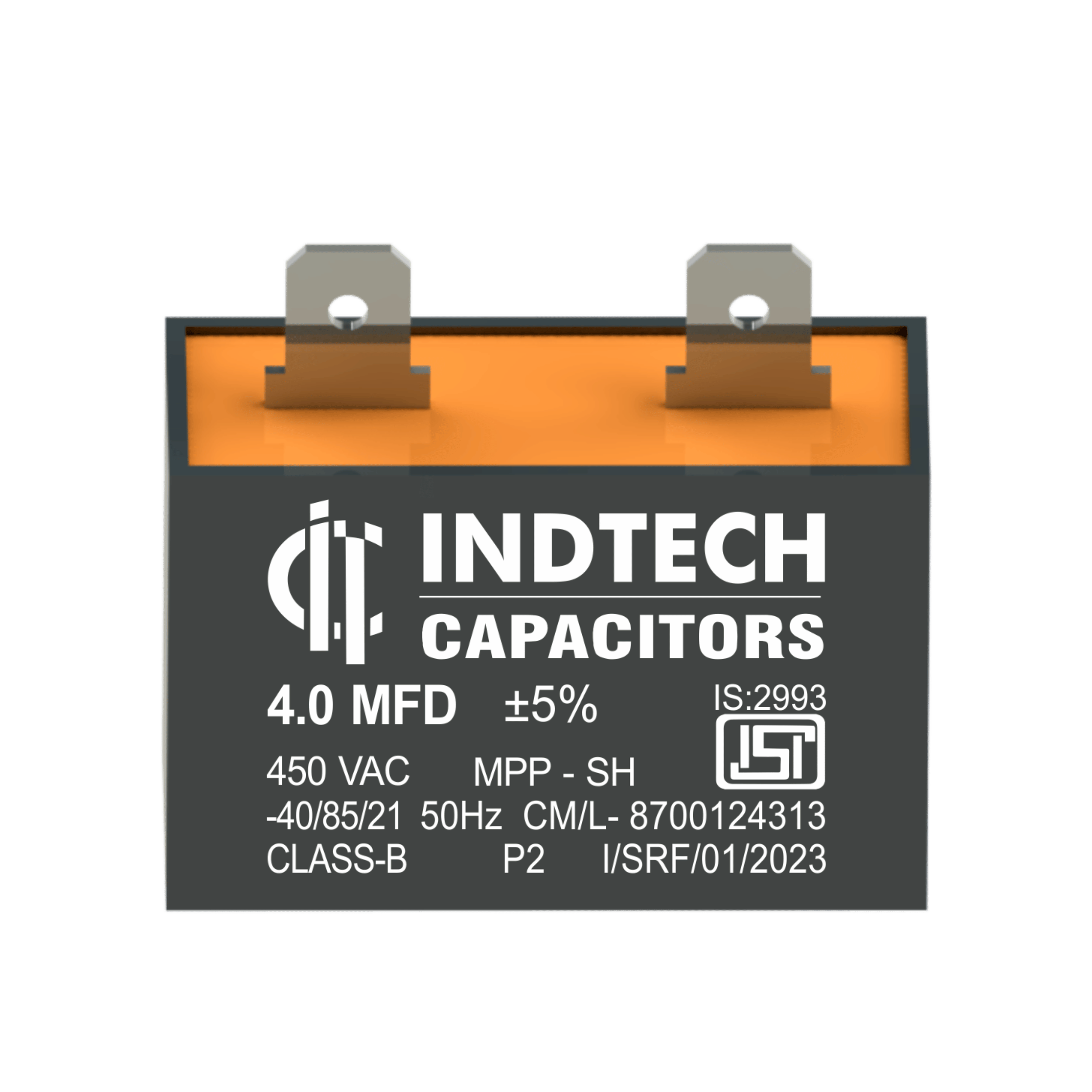

Square Box Relay
Range: 3 MFD To 5 MFD 50Hz. 440 Volt





Main Features

  • Improves motor efficiency and power factor

  • High capacitance value for maximum starting torque

  • Temporarily connected, disconnected by a centrifugal switch once the motor reaches a certain speed.

    •

    Technical Specifications

    Capacitance Range

    0.5 to 80 MFD & (40/60µF ~ 200/250µF)

    Capacitance Tolerance

    ±5%, ±10%

    Rated Voltage

    250V AC to 550V AC

    Rated Frequency

    50/60Hz

    Tan Delta

    ≤0.0020(100Hz)

    Climatic Category

    -25/85/21, -40/85/21

    Case

    Plastic & Aluminium (as per customers specs)

    Dielectric

    Polypropylene

    Encapsulation

    Polyurethane Resin

    Reference Standards

    IEC 60252 , IS:2993
