Fan Capacitors

These capacitors are especially designed for the Fan industry, i.e. Ceiling Fans, Table Fans, Pedestal Fans, Industrial Fans etc.
The ergonomic design and high efficiency makes these capacitors complete value for money.
MPP Capacitors for Fan are available in different sizes and shape.
You can choose one as per your requirements and budget.

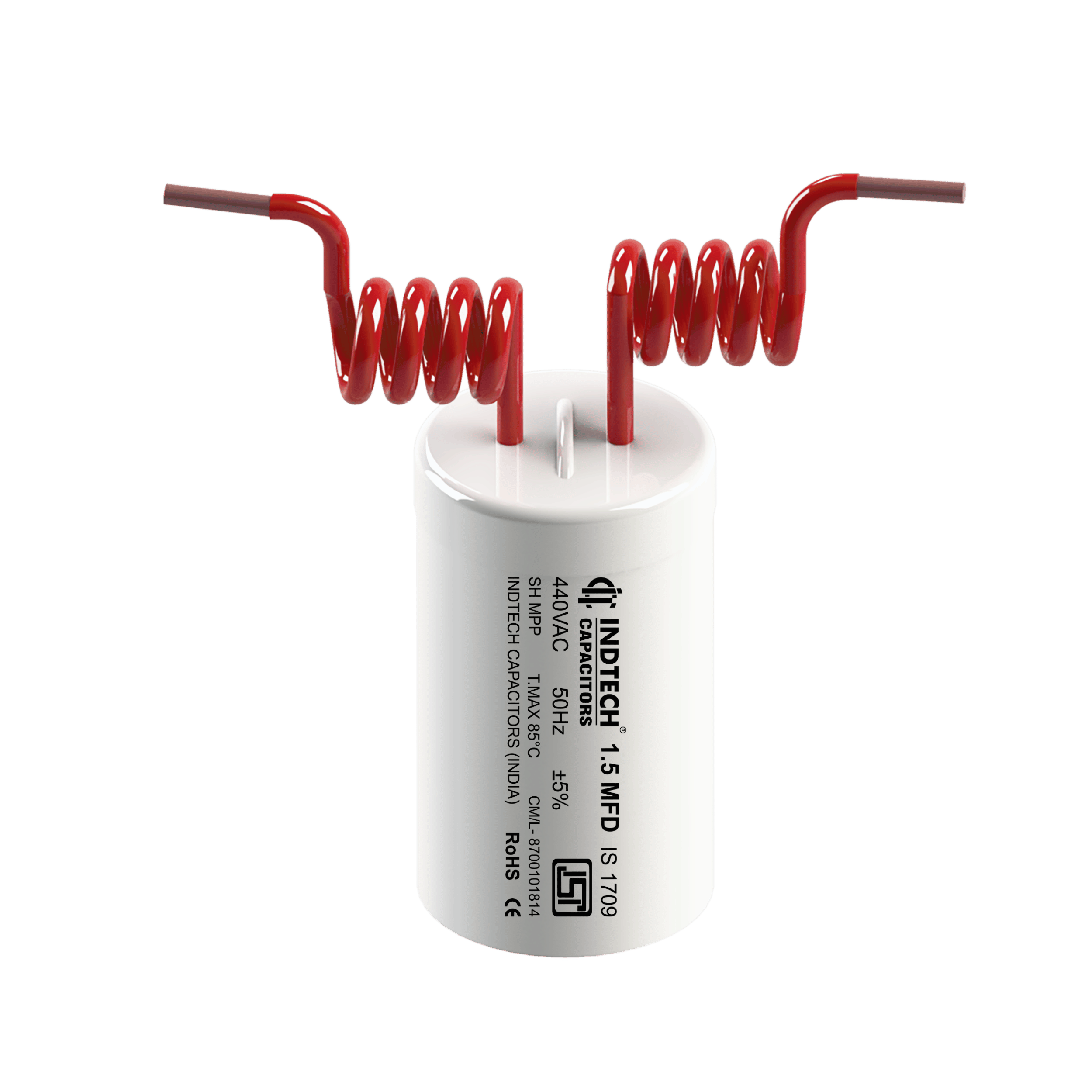

Range: 1.50 MFD To 3.15 MFD 50Hz. 440 Volt
Plastic Body-Dry-Pin/Wire Terminals

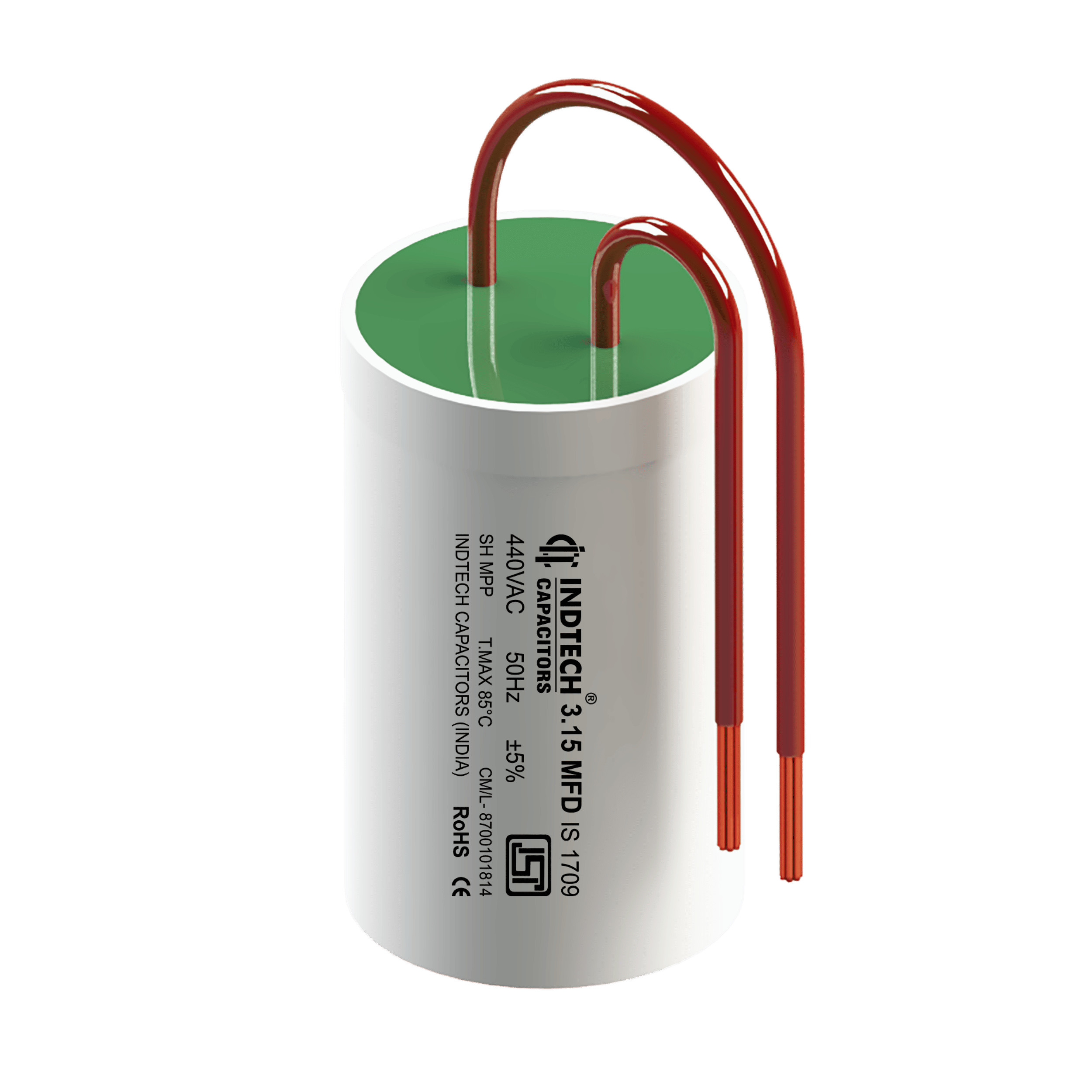

Range:  2.50 MFD or 4.0 MFD 50Hz. 440 Volt
Pin/Wire-Premium Series

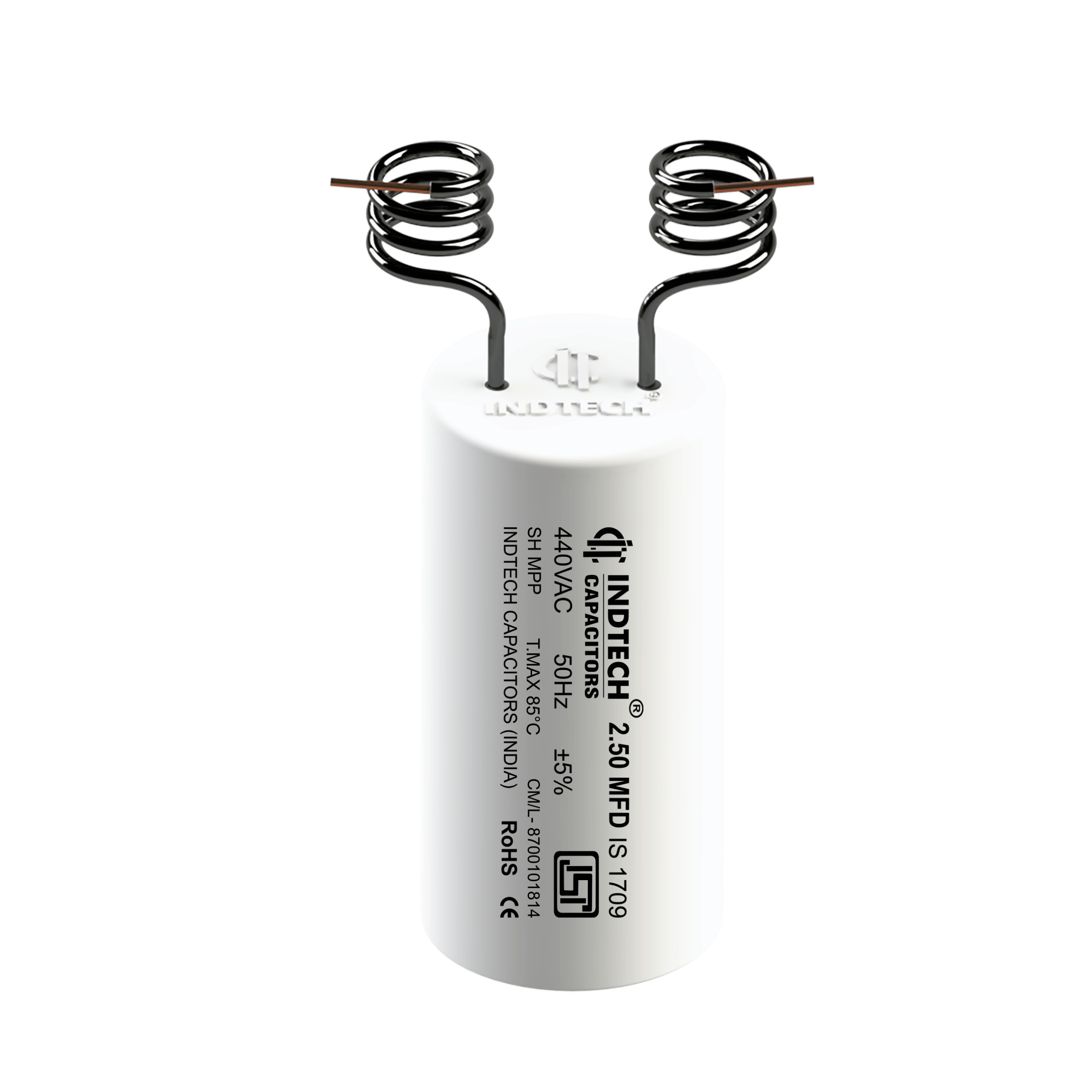

Range:  2.50 MFD To 4.0 MFD 50Hz. 440 Volt
Plastic Body-Dry Epoxy Top

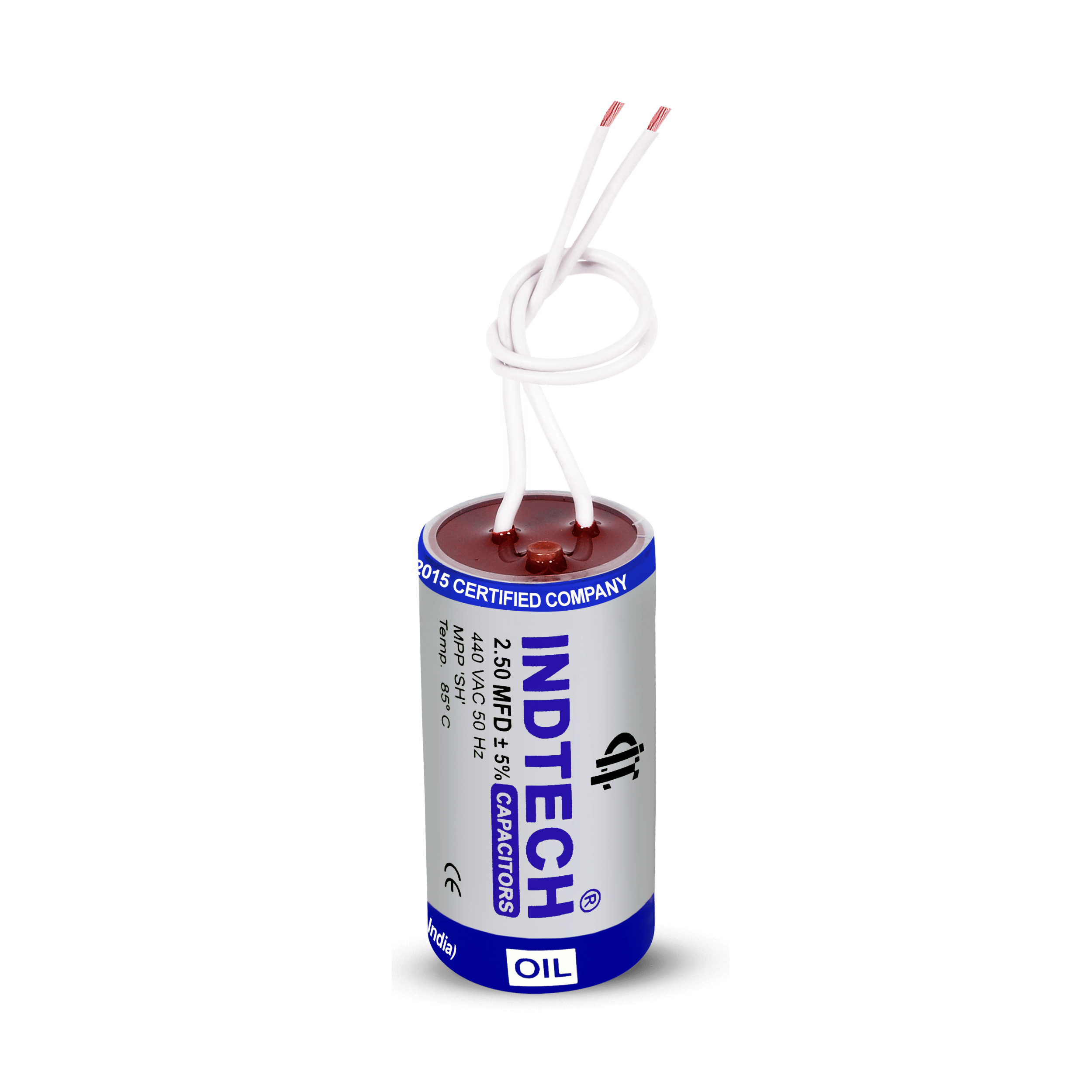

Range:  2.00 MFD To 4.00 MFD 50Hz. 440 Volt
Aluminium Body-Oil Filled Pin/Wire Terminals

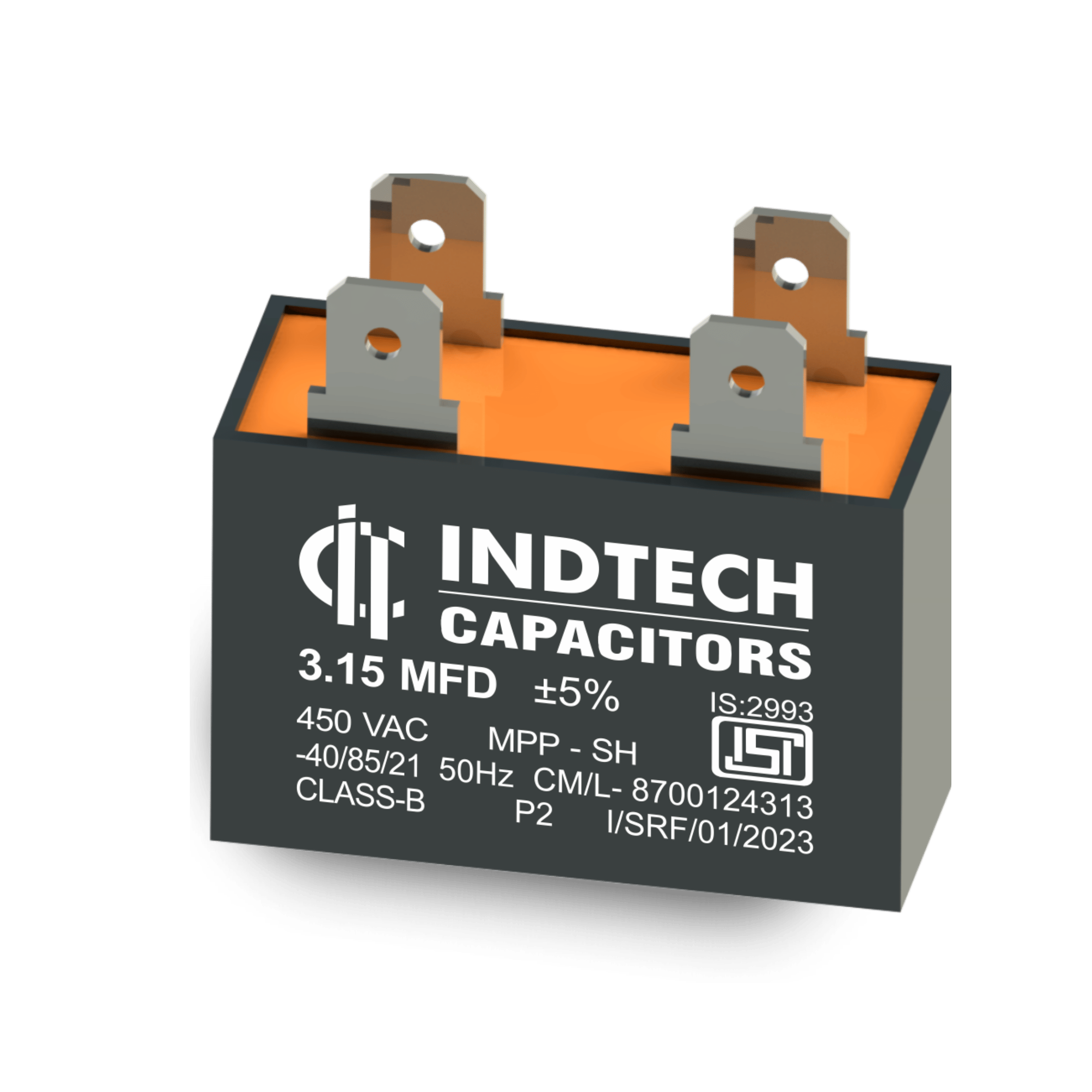

Range:  1.50 MFD To 4.0 MFD 50Hz. 440 Volt
Square Box Type-Epoxy Top Pin/Wire





Main Features

  • Low dissipation factor.

  • Small inherent temperature rise.

  • Excellent self-healing stability.

  • Noise Reduction.

  • Motor Protection.

  • Compact Design, Cost Efficiency.

    •

    Technical Specifications

    Capacitance Range

    0.5 to 4 MFD

    Capacitance Tolerance

    ±5%

    Rated Voltage

    220V AC to 450V AC

    Rated Frequency

    50/60Hz

    Tan Delta

    ≤0.0020(100Hz)

    Climatic Category

    -25/85/21, -40/85/21

    Case

    Plastic & Aluminium (as per customers specs)

    Dielectric

    Polypropylene

    Encapsulation

    Polyurethane Resin (PP-Dry & Oil Filled)

    Reference Standards

    IEC 60252 , IS:2993 & IS:1709
