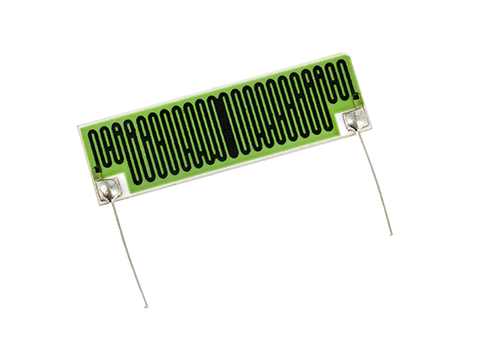

Provide stable performance for a wide range of resistance values, with voltage ratings up to 30KV.

Low-temperature coefficients are available for high stability circuit applications.

The space-saving planar package offers an alternative to traditional high voltage resistors.

The varies applications of flat resistors are HV Power supplies, Medical instrumentation, Current pulse limiters, Ionization chambers.

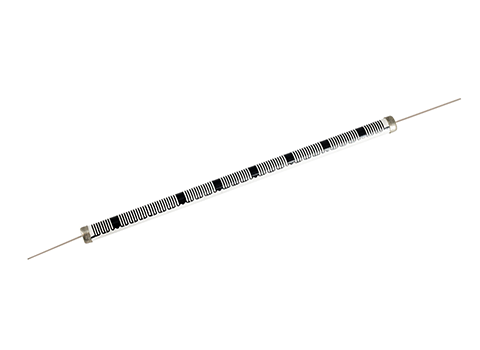

This high-power resistor offers exceptional stability and durability thanks to its thick film element on an alumina core. CTTFRs are ideal for applications requiring high power handling and wide resistance ranges. They come in various sizes and tolerances to meet diverse design needs.

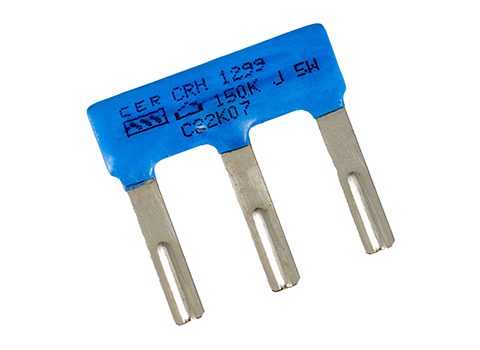

Cermet’s flat type voltage dividers provide stable performance for a wide range of resistance values and ratio values.

Providing precision thick film voltage multiple taps are provided on the flat type.

Tight ratio tolerances.

Consistent Performance

The applications of Voltage Divider’s CFHVD Series are HV Power supplies, Medical instrumentation, Current pulse limiters, Ionization chambers.

Material Resistor Element: Thick film on Alumina Thick film on Alumina

Mechanical Dimension: 50mm x 20mm std. size, Special sizes are on request.

Electrical Ratio Tolerances: 1% to 5%

Temp. Coefficient Tracking: TCR +/- 50ppm and VCR= +/-30ppm. A complete description of the Divider is required.

Electrical Resistance Range: 100 Ohms to 5000M

Power Rating: 0.25W to 5.5W

Voltage Rating: 1.5kV to 25kV

Tolerance: 1% to 20%

Operating Temperature: -55˚C to +110˚C
