Washing Machine Capacitor Manufacturer

Indtech Capacitors is the leading manufacturer of MPP dual capacitors for washing machines. These capacitors are widely used in most modern washing machines and are available in various sizes and packages. Specifically designed to resist damage from moisture and water exposure, making them suitable for use within washing machines.

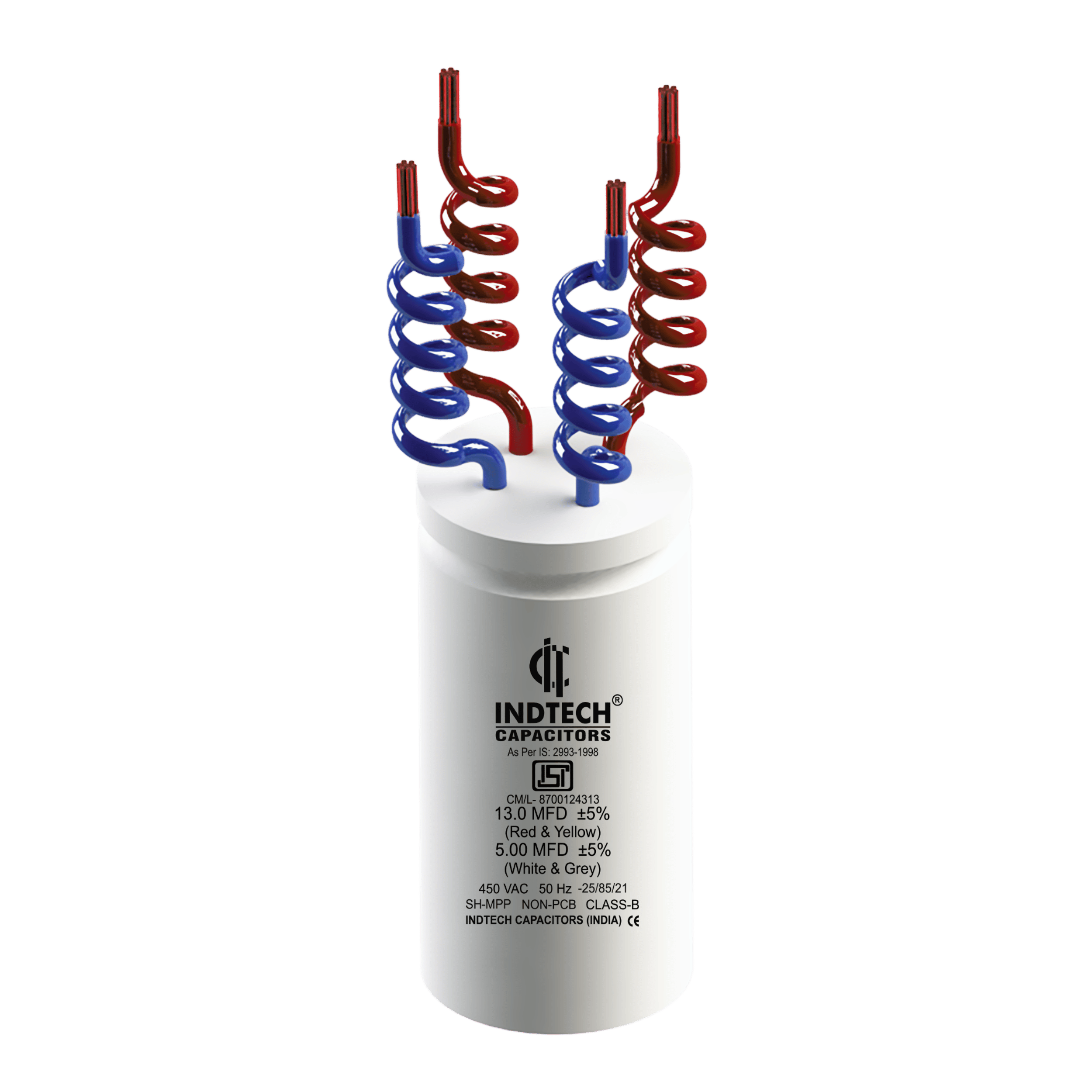

Plastic Body-Dry Type
Range: – 5.3+2.1 MFD To 12.0+6.0 MFD 50Hz. 450 Volt

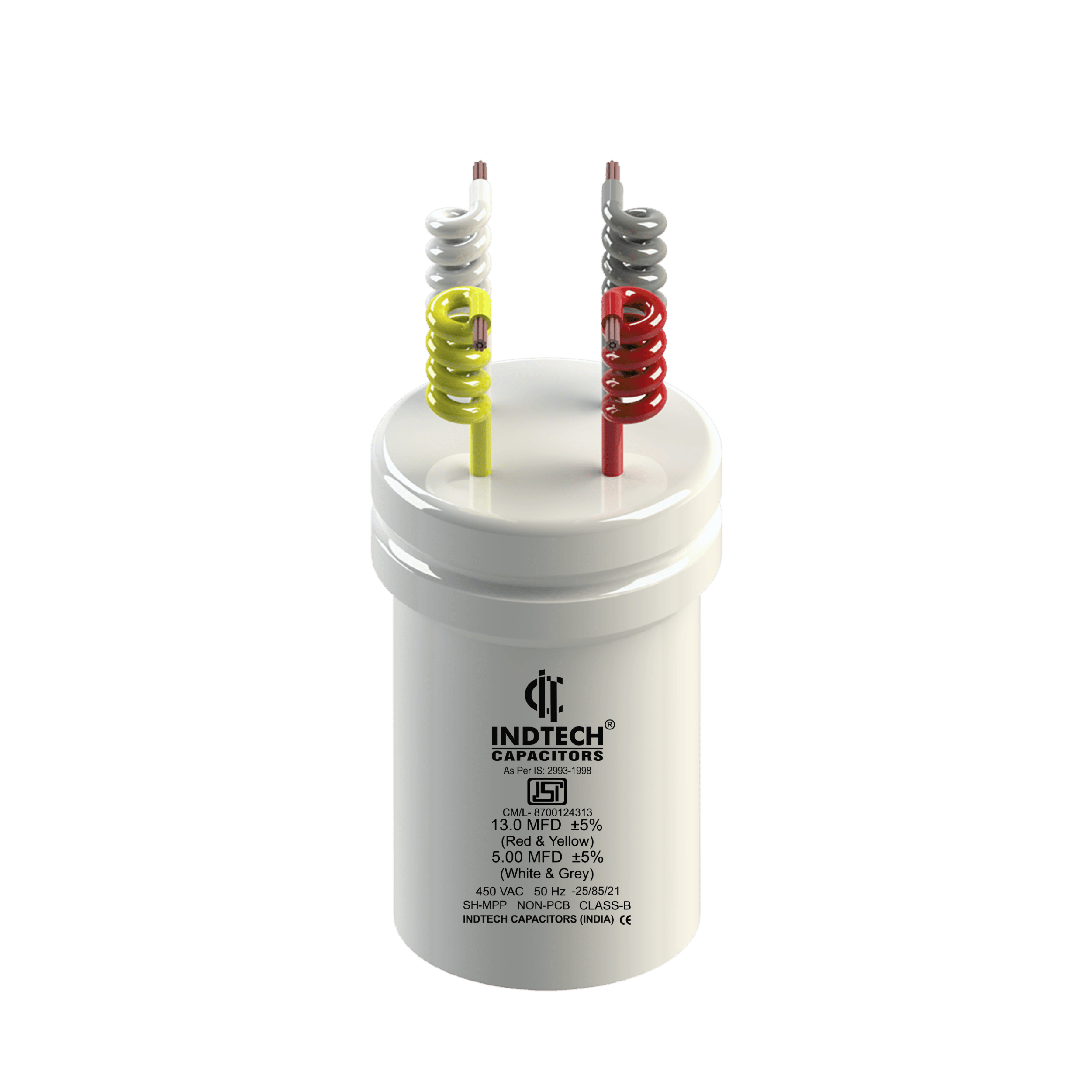

Plastic Body-Dry Funnel Shape
Range: – 5.3+2.1 MFD To 12.0+6.0 MFD 50Hz. 450 Volt

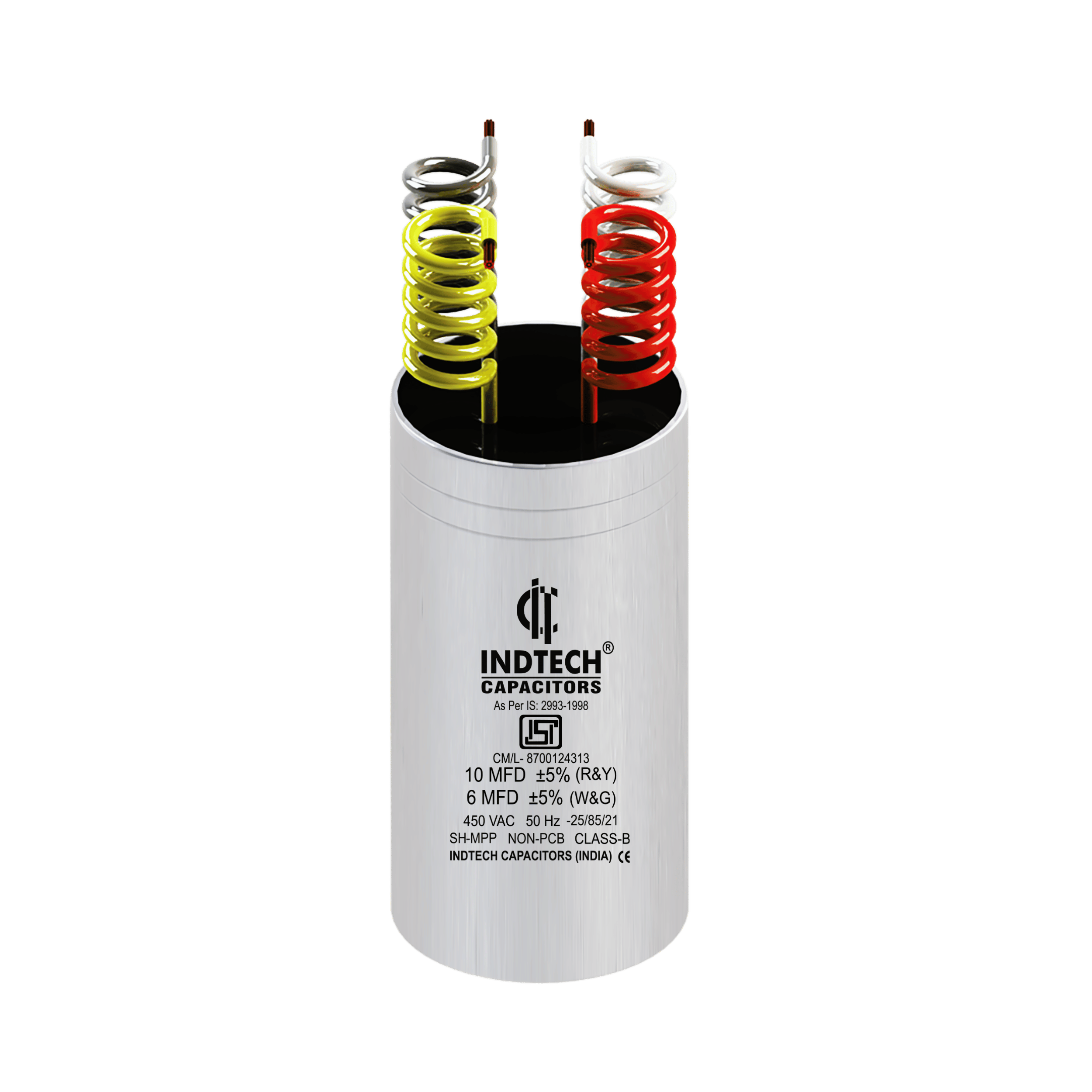

Aluminium Body-Epoxy Top
Range: – 5.3+2.1 MFD To 12.0+6.0 MFD 50Hz. 450 Volt





Main Features

  • Superior Temperature Stability.

  • Minimal Energy Loss.

  • Extended Service Life, Enhanced Safety and Self-Healing.

  • Robust Construction, Explosion Proof / Burst Proof.

  • Vibration Resistance & Environmentally Friendly

    •

    Technical Specifications

    Capacitance Range

    5.3 + 2.1 to 12+6 MFD

    Capacitance Tolerance

    ±5%

    Rated Voltage

    450V AC

    Rated Frequency

    50/60Hz

    Tan Delta

    ≤0.0020(100Hz)

    Climatic Category

    -25/70/21, -25/85/21, -40/85/21

    Case

    Plastic & Aluminium (as per customers specs)

    Dielectric

    Polypropylene

    Encapsulation

    Polyurethane Resin (PP-Dry & Oil Filled)

    Reference Standards

    IEC 60252 , IS:2993
