Air Conditioner capacitor

MPP Capacitors for Air Condition are not just used in AC’s but they are also used in Washing Machines, UPS, Coolers and Various other appliances. They are largely preferred by our clients because of its flawless functioning and great performance. Cylindrical & Oval shape designed incorporating with safety mechanism device offering long-life and reliable products.

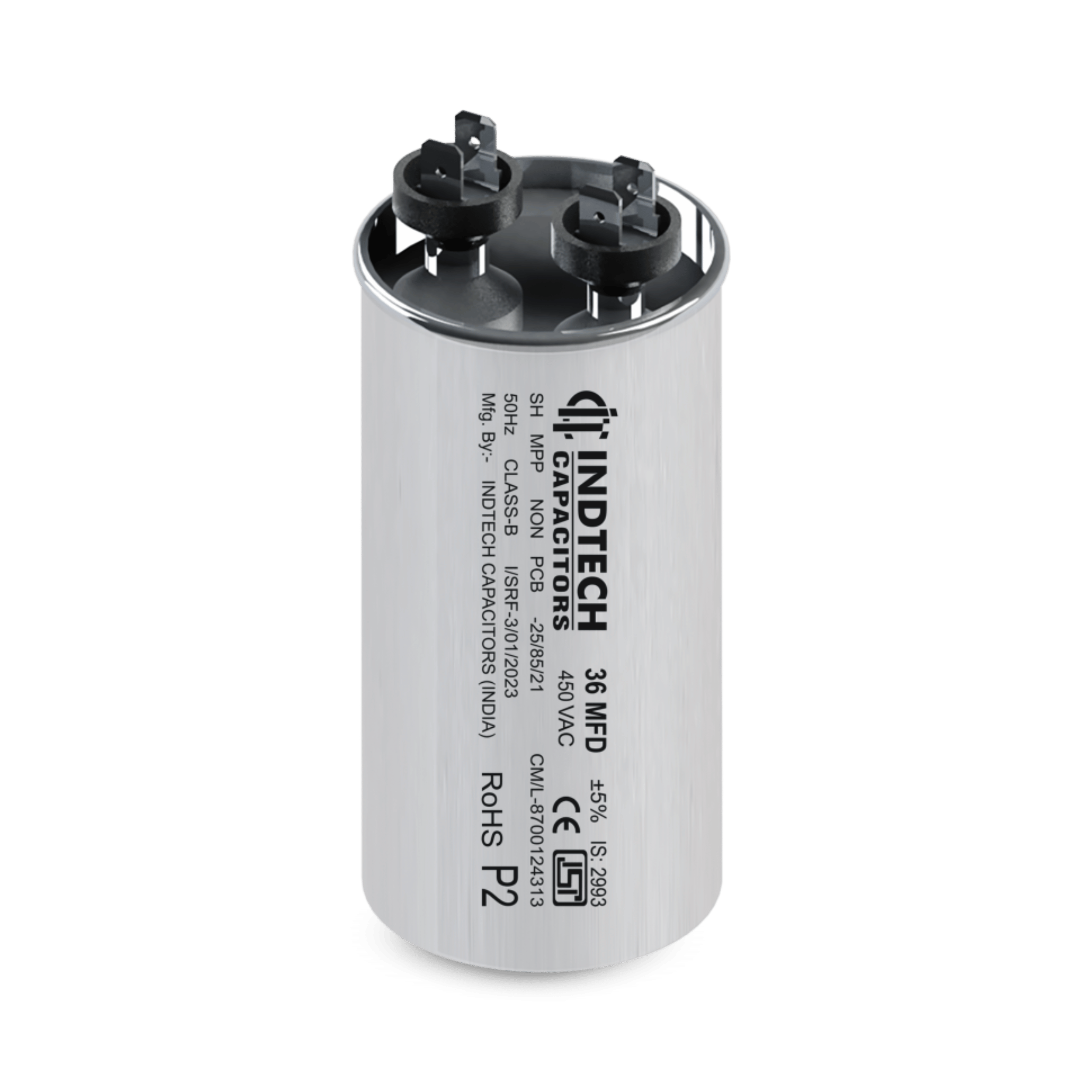

Aluminium Body (Burst Proof Capacitors)
Range: – 0.5 MFD To 120 MFD 50Hz. 450 Volt

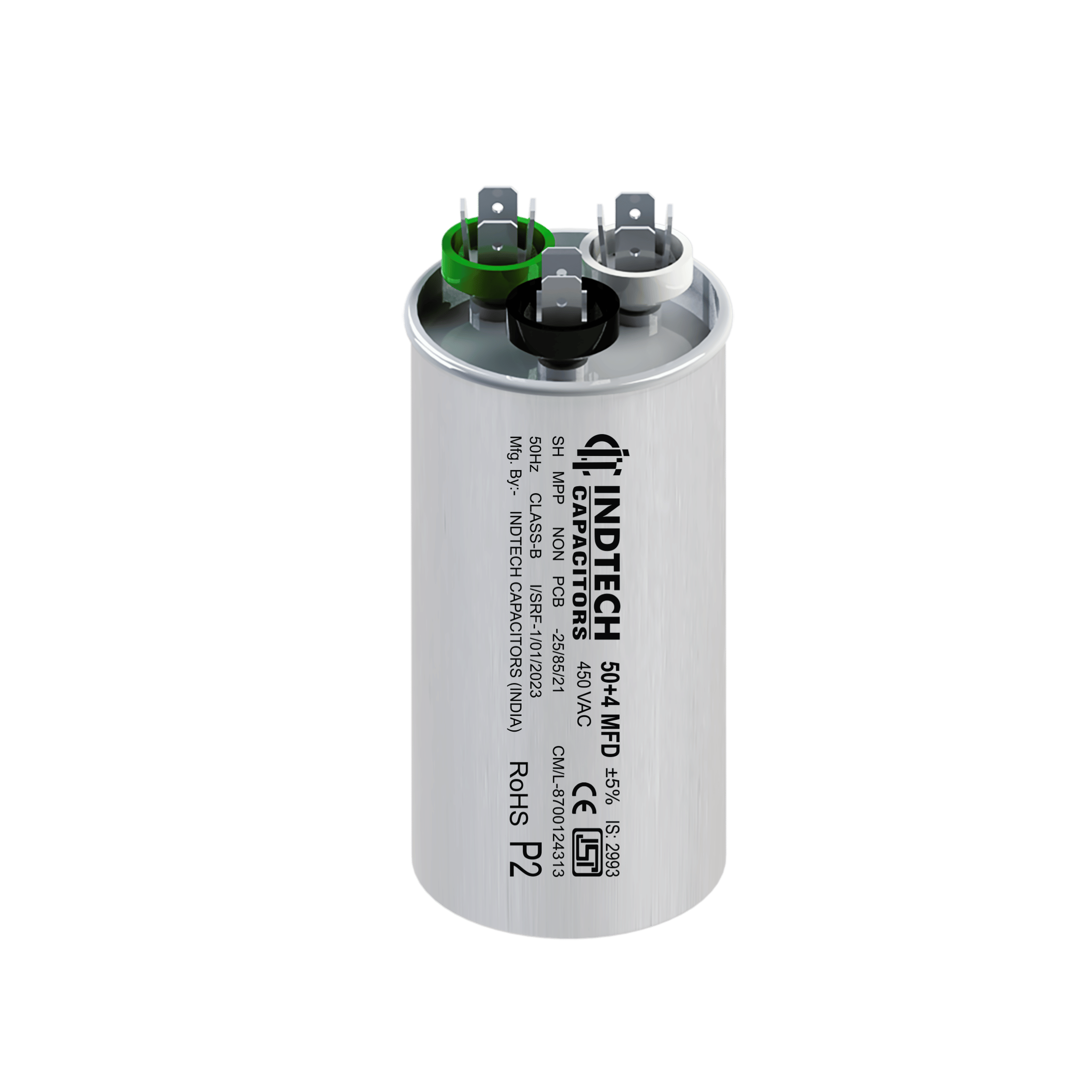

Aluminium Body-(Dual Run Capacitors)
Range: – 10+10 MFD To 80+10 MFD 50Hz. 450 Volt





Main Features

  • High Capacitance Range.

  • Excellent Thermal Stability.

  • Low Dissipation Factor.

  • Durable Construction.

  • Wide Operating. Temperature Range.

  • Self-Healing Properties.

  • Gel Resin or Oil Filled, Flame Retardant.

  • High Voltage Rating & Explosion Proof
    Burst Proof Case: Housed in high purity aluminium cans.

  • 0.5 to 0.7 mm thick.

  • ensuring robustness and durability Metal Top: The metal top assembly consists of a cover.

  • washer

  • packing material

  • connecting rivets and terminals.

  • providing secure and reliable connections.

    •

    Technical Specifications

    Capacitance Range

    0.5 to 120 MFD & Dual 7.5+5 to 80+10 MFD

    Capacitance Tolerance

    ±5%

    Rated Voltage

    250V AC to 450V AC

    Rated Frequency

    50/60Hz

    Tan Delta

    ≤0.0020(100Hz)

    Climatic Category

    -25/85/21, -40/85/21

    Case

    Aluminium (Round & Oval Shape)

    Dielectric

    Polypropylene

    Encapsulation

    Polyurethane Resin

    Reference Standards

    IEC 60252 , IS:2993
